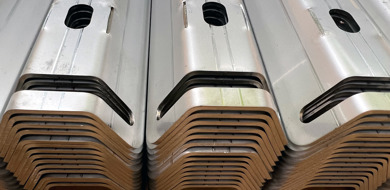

Maatwerk Kanten Lasersnijden Paul Meijering Stainless Steel 2

Custom-made

Press braking

We are happy to tailor the edging or setting of various sheet materials for you. This can be delivered directly from stock, so you can start working with the materials right away.

Ruud van de Mortel

teamleader sales customisation

+31 (0)418 576072 ruud@paulmeijering.nl Contact directly

More about

Press braking

Our employees are specially trained to operate the press brakes and to place your sheets in the correct bending sequence. Would you like to know the possibilities for bending and folding your materials? Our custom sales department will be happy to tell you what we can do for you. Contact us for more information or to make an appointment.

Safan Darley

H-Brake Hybrid 110T-1600

The Safan Darley H-Brake Hybrid 110T-1600 has a wide range of capabilities. Over a bending length of approximately 1600 mm, this press brake can generate a maximum press capacity of 110 tons. Smaller thick sheet metal parts no longer need to be produced on proportionally long press brakes, significantly improving the efficiency and versatility of our machinery.

Compact powerhouse

Hybrid press brake with the highest efficiency

This machine has a very high tonnage density and provides an energy saving of up to 50%. It is low-noise and achieves up to 30% higher productivity. It has a back gauge over the full working length and a high-dynamic Y-axis control.

Specifications

Tonnage 110 | Bending length 1600 | Press force in kN 1100 | Working length in mm 1600
Maximum stroke in mm 280
Installation size (Q-size) in mm 555-655
Approach speed in mm/sec 230
Max. bending speed in mm/sec 10
Return speed in mm/sec 230

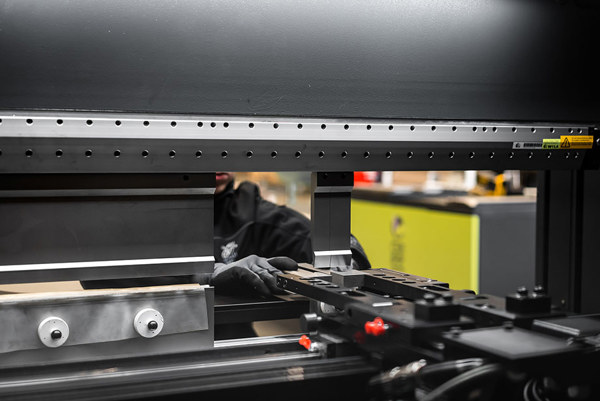

Kanten Zetten Maatwerk Safan Darley Detail 3 Paul Meijering Web

Bystronic Xpert Pro

320/4300 Extended

With the Bystronic Xpert Pro, we can process sheets with a bending width of 4,300 mm and a thickness up to 8.0 mm. Sheets are bent with a pressing force of 320 tons.

Specific characteristics and benefits

Automatic compensation frame through pressure reference technique | Automatic temperature correction | 5th generation dynamic hydraulic bombing.

Constant production throughout the entire operating time of the machine. Variables are automatically compensated in the background without the operator needing to make manual adjustments.

Optical Bend Guiding System (OBGS) or Optical Bending Guidance System.

Operator is informed about the actions to be taken through LED indicators integrated in the top bar. The advantage of this is efficient and quick operation and reduction of the risk of errors.

Hydraulic tool clamping - Tool change can be done quickly, increasing the efficiency of performing tasks.

Extra large opening of 200mm with extra stroke and installation height.

Wide applicability of the machine.

Dynamic bending aid for sheet support during the bending process.

By using the bending aid, it is possible to handle larger and heavier sheets without needing an additional operator. This leads to higher efficiency and lower costs.

With the 5-axis stop, the most complex products can be positioned, including bends at an angle.

Movable control console with advanced Bystronic bending software and additional foot pedal.
With this option, working with the machine becomes more flexible as the operator can place the control terminal in the desired position. This increases efficiency as the operator does not have to walk back and forth between the work area and the control terminal. It also enhances operator safety as the work area does not need to be left to operate the machine.

To further shorten the entire delivery process, the press brake has the ability to import STEP and DXF files, so that we can work with the correct files. Of course, we can also draw ourselves.
