Custom-made

Laser cutting tubes

We also do custom laser cutting of tubes for you. With our BLM 3D LT8.20 tube laser, we process your materials quickly and accurately with maximum quality.

Renso Strating

sales & customisation planning

+31 (0)418 576070 renso@paulmeijering.nl Contact directly

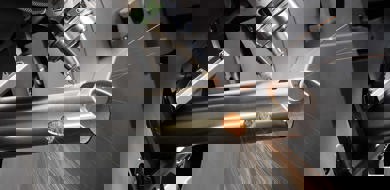

Laser cutting tubes

The BLM 3D LT8.20 fibre tube laser

has the largest working range for laser cutting tubes and has a 4 kW laser source. We specifically customise the laser cutting of tubes for you.
With our BLM 3D LT8.20 tube laser, we process your materials quickly and accurately with maximum quality. Our experts ensure that the machine cuts your materials (in a 3D mode) to the correct length and provides the desired processing. Post-processing such as drilling and punching is not necessary thanks to a sublime finish. Cutting waste is automatically removed, so the cutting work comes out of the machine completely clean.

Our custom department will be happy to provide you with more information on all possibilities.

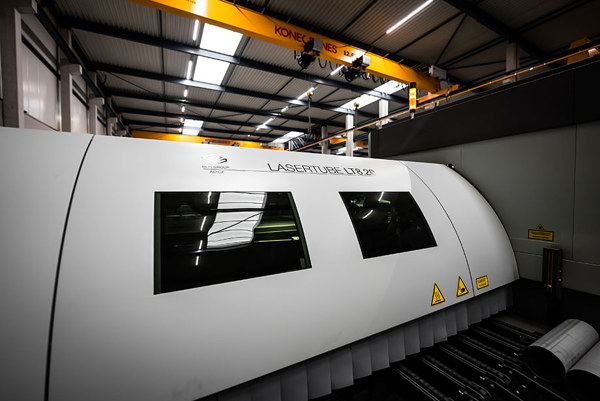

BLM LT8.20 Buislaser Paul Meijering Video

Versatile

Many editing options available

With our advanced BLM 3D LT8.20 fibre tube laser, many operations are possible and we are productive in both large and small series.

To quickly cut large series, the tubes are loaded one after the other without interruption. If an urgent order comes in, you can easily adjust the two loading units to the desired situation in no time. The ongoing series is then immediately resumed by the machine.
For small series and frequent production changes, the machine configures itself automatically so that production can continue without interruptions. Click on the image on the left and watch the video.

Technical specifications

Operations

Our BLM 3D fiber LT8.20 tube laser can process the following diameters up to a maximum length of 6500mm.

3D models created with external CAD can be imported in STEP, JGES, XT and even IFC formats. Our sales department can only read STEP.

Hollow sections	12 - 200 mm
Round pipes	12 - 240 mm
Cutting thickness	max 8.0 mm

Automatic supply and removal of materials. We exclusively laser cut stainless steel.

Process optimisation

Saving starts with the material. By nesting as many pieces as possible from a tube, we optimally save on the material and keep the final cutting waste limited.
Production changes without adjustments - When the product changes, the loader does not have to be manually operated each time. With a loading capacity of 5,000 kg, the machine works fully autonomously for a long time. Loading the bundles is quick and without jamming, while maintaining the tube orientation.

Save

Time and materials

Thanks to dynamic nesting, LT8.20 determines the order of the parts that need to be cut from the tube, in order to minimise cutting waste at the end of the tube and to facilitate and speed up unloading.

Equipped with ArTube and ProTube CAD/CAM software for drawing, manipulating, and designing tubular products. From idea to parts program in a few simple clicks. ProTube provides reliable quotes and allows you to determine the best production strategy for both individual parts and complete production batches. It also checks the system information, work in progress, and estimated delivery time.

Active Scan and Active Weld

Active Scan is an optical measuring system that uses real-time compensation to counteract axial errors caused by irregularly shaped tubes or profiles. Active Weld detects the position of the weld seam on the outside or inside and repositions the tube so that the weld seam always lies at the programmed position.
